Choosing the Right PSU for Your PC
Choosing the right PSU (Power Supply Unit) is essential for a reliable and efficient PC build, even though it often receives less attention than components like the CPU or GPU. A PSU doesn’t just power your PC; it influences your system’s stability, longevity, and efficiency. Here’s what you need to know to pick the perfect PSU for your setup.
Calculating Power Requirements
To start, it’s important to calculate the power requirements for your system. Each component in your PC build, from the CPU to the GPU and storage drives, has specific wattage needs. Powerful parts, especially high-end GPUs and CPUs, demand more power.
Using PCPartPicker can help simplify this calculation. By adding each component to your PC build on PCPartPicker, the tool will estimate the minimum wattage you’ll need for your PSU. This method also accounts for future upgrades, so you can select a PSU that won’t need replacing when you add more demanding parts.
Tip: Avoid choosing a PSU that exactly matches your current wattage needs. It’s best to add a buffer of at least 100–150 watts to allow for potential upgrades like a higher-end GPU or additional storage. This extra capacity can also help your components run more efficiently, potentially extending their lifespan.
Planning for Future Upgrades
Thinking beyond your current setup is a smart approach when choosing a PSU. For instance, upgrading from a mid-range GPU to a high-end model could increase power requirements by 100–150 watts. Choosing a PSU with additional capacity saves you the expense of replacing it later.
Continuous vs. Peak Power Ratings
PSUs list both continuous and peak power ratings. Continuous power is the stable amount of power a PSU can provide over extended periods, while peak power refers to the maximum output during short power surges. For consistent, stable performance, especially during high-demand activities like gaming or video editing, it’s best to choose a PSU based on its continuous wattage.
Efficiency and 80 Plus Certification
Efficiency is a critical factor for both stable operation and cost-effectiveness. A high-efficiency PSU wastes less power as heat, lowering your electricity bill and helping to keep your system cooler. The 80 Plus certification system rates PSUs by efficiency:
- 80 Plus Bronze: 82-85% efficiency, ideal for budget builds.
- 80 Plus Gold: 87-90% efficiency, great for mid-to-high-end setups.
- 80 Plus Platinum & Titanium: 92-94% efficiency, perfect for energy-intensive builds or hot environments.
An efficient PSU is also quieter, generates less heat, and can help prolong your PC’s lifespan.
PSU Rails: Single vs. Multi-Rail
The +12V rail is responsible for powering the CPU, GPU, and other high-power components. Single-rail PSUs make all power available across the system, while multi-rail PSUs distribute power across multiple rails, adding an extra layer of protection against overloading. For most builds, a single-rail PSU is sufficient, but multi-rail PSUs are beneficial for high-end setups with multiple GPUs.
Ensuring PSU Compatibility: Form Factor
PSUs come in different form factors, with ATX being the most common for standard mid-tower and full-tower cases. If you’re working with a smaller case, consider compact PSU options like SFX, which are designed for space-constrained builds. Check your case’s compatibility to ensure the PSU fits before purchasing.
Connector Compatibility
Your PSU should have the right connectors to power all of your components:
- 24-pin ATX connector: Essential for most modern motherboards.
- 8-pin CPU connector: Needed for most processors.
- PCIe connectors: Required for GPUs; some high-power GPUs need two 8-pin connectors.
- SATA and Molex connectors: Used for drives and peripherals.
While splitters are an option, overloading the PSU can be risky, so ensure it has enough connectors to avoid issues.

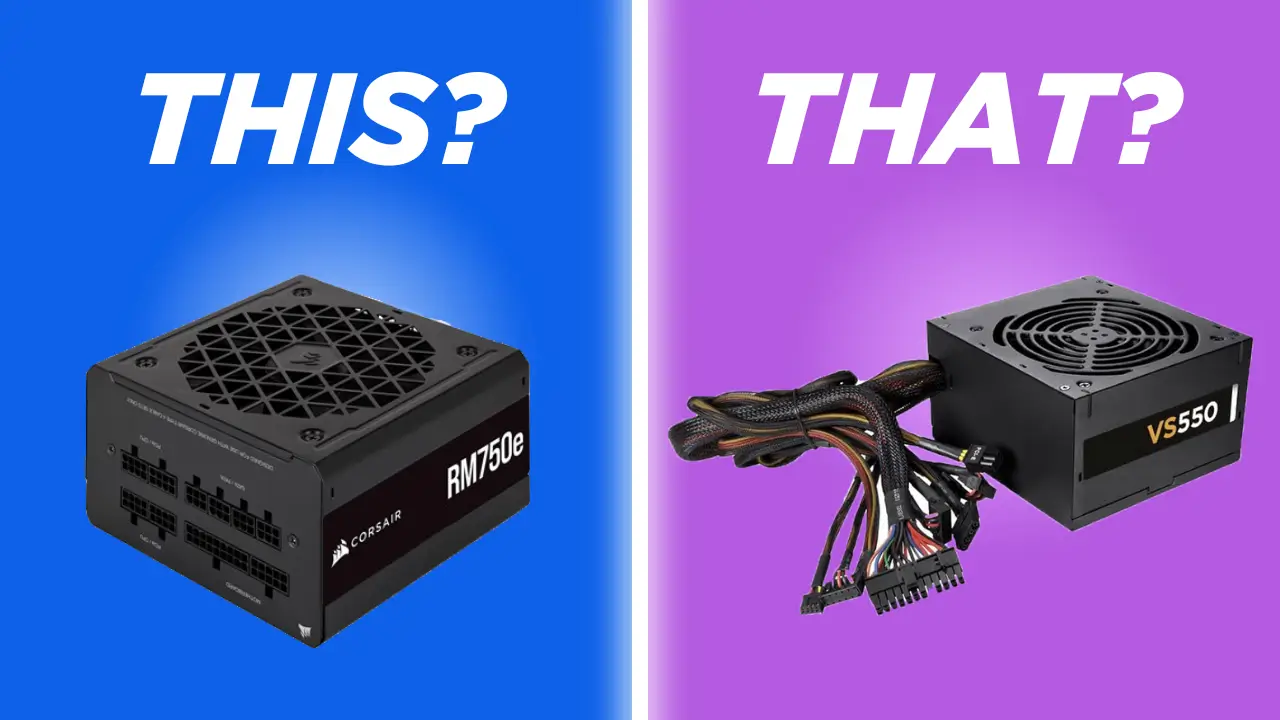

Cabling Options: Modular vs. Non-Modular
PSUs come in three cabling types:
- Non-Modular: All cables are permanently attached, which can lead to clutter but is often more budget-friendly.
- Modular: Allows you to connect only the cables you need, keeping your build organized and improving airflow.
- Semi-Modular: A hybrid option, with essential cables permanently attached and others detachable.
For better airflow and organization, modular PSUs are ideal, especially in smaller builds.
Additional Features: Protections and Noise Control
Many PSUs come with built-in protections to prevent damage:
- Overvoltage Protection (OVP): Prevents harm from excessive voltage.
- Overcurrent Protection (OCP) and Overload Protection (OLP): Protect against excessive current or load, adding safety during shorts.
For noise control, some high-end PSUs feature large, low-speed fans or hybrid fan modes that only activate under heavy load, reducing noise during light tasks.
Conclusion: Making the Right PSU Choice
Choosing the right PSU is essential for a stable, reliable, and future-proof PC build. By calculating your system’s wattage, using tools like PCPartPicker, considering future upgrades, and prioritizing efficiency, you can select a PSU that meets both your immediate and long-term needs. A well-chosen PSU ensures stable power delivery, protects your components, and keeps your PC ready for future upgrades.
Key Takeaways:
- Wattage: Use tools like PCPartPicker and add extra wattage for upgrades.
- Efficiency: Aim for 80 Plus Gold or higher for most builds.
- Form Factor: Make sure it fits your case.
- Rails: Single rail for simplicity; multi-rail for high-end protection.
- Cabling: Modular for better airflow, non-modular for budget builds.
- Protections: Look for OVP, OCP, and quiet fan technology.
Choosing the right PSU can save you from future headaches, protect your components, and extend your PC’s lifespan.
